Using the Stars to Understand Latitude—A Rare Instructional Star Chart

Rare, commercially-published star chart, made for teaching constellations and the path of the sun through the celestial sphere, the ecliptic, to students of astronomy. Once these constellations and their patterns were understood, they could be used to find latitude, among other navigational calculations.

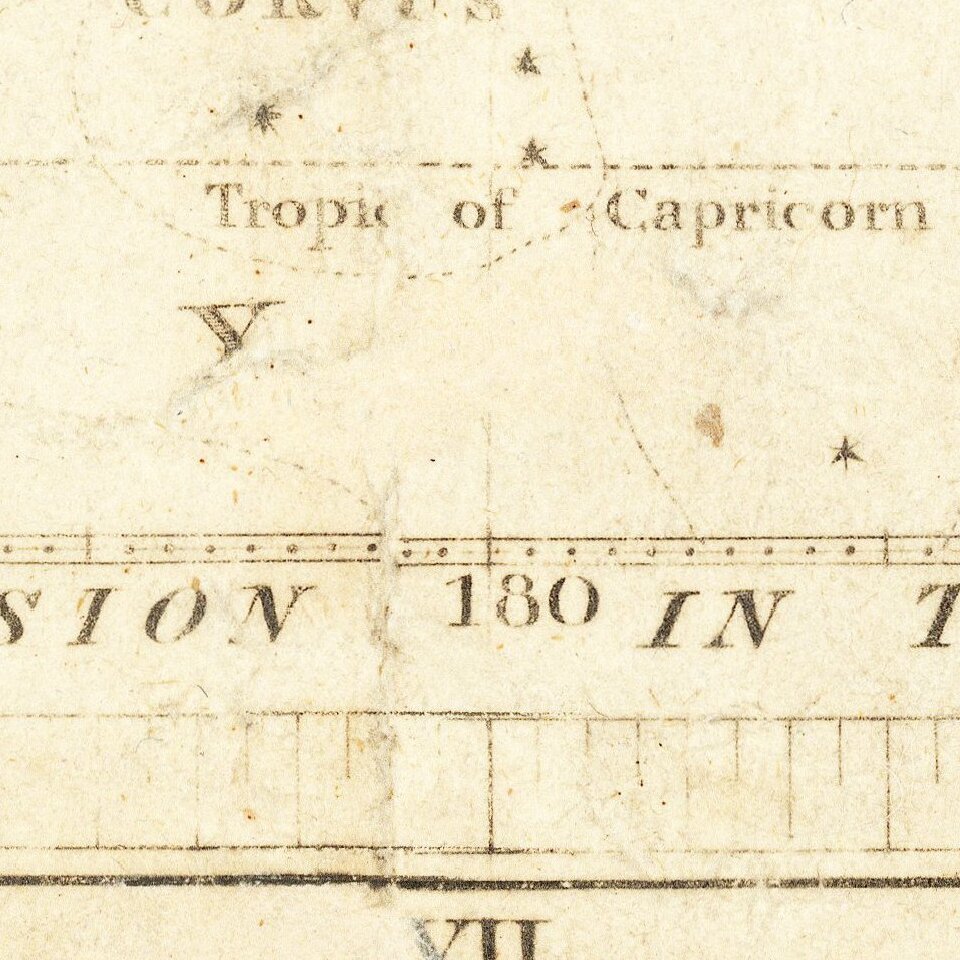

Drawn by J. W. Norie, who worked for William Heather, the publisher, the chart shows two parallel expanses of stars. The top strip shows the constellations as they relate the ecliptic, which waves through the strip chart. At top and bottom are the right ascension given in time and degrees, that is the east-west coordinate by which a celestial body (including constellations) is measured (i.e. the angular distance of a body’s hour circle east of the vernal equinox, measured along the celestial equator). The other axis measures north and south declination, that is the angular distance of a point (or constellation) north or south of the celestial equator.

Within the top strip, each constellation is outlined with dotted lines and a title. The actual stars are also included, drawn at specific sizes to show the magnitude, or brightness, of each star. By contrast, the bottom strip has only the stars with no labels, so that a student could compare the two.

Between the chart strips is a table that shows the progression of the sun along the ecliptic as related to months; these are the zodiac signs which are still in use today. It begins in March, at the time of the vernal equinox.

The following advertisement appeared in J.W. Norie's The Description and Use of Hadley's Quadrant and Sextant . . . (1803):

Just Published—Price Five Shillings

PLANISPHAERIUM COELESTE; - OR, MAP OF ZODIACAL STARS:

Intended to assist Students in Astronomy in acquiring a Knowledge of the Stars near the Ecliptic, and peculiarly adapted to the purpose of finding the Stars proper for ascertaining the Latitude & Apparent Time at Sea; the Longitude by Lunar Observations, &c.

Latitude, one’s position north or south of the equator, could be ascertained by measuring the altitude, degrees above or below the equator of Polaris, the North Star (associated with but not always directly in line with the celestial north pole, depending on epoch and location). However, if one knew the position of constellations relative to the ecliptic and the equator, as this chart shows, those constellations could also be used to measure one’s latitude.

Rarity

This chart was accompanied by an Explanation, which was printed in 1802. OCLC locates only the example of the chart in the British Library. The explanatory text is also very rare, with only the British Library, University of Kwazulu Natal, and the Boston Public Library, and the University of Aberdeen (1810 printing) noting copies in their collections.

The longitude problem

Whereas calculating latitude, and the various ways to find that coordinate, had long been known to navigators, finding one’s longitude remained a mystery until the late-eighteenth century. European states offered rewards for adequate solutions to the longitude problem, as it affected their overseas empires and commerce. Interestingly, the problem was solved almost simultaneously by two methods, one mathematical and one mechanical.

Previously, navigators were dependent on dead reckoning. They would calculate their direction and speed and then record their estimated distance traveled on a chart or in a log. However, this method could easily go wrong, leaving ships many degrees of longitude away from where they wanted to be (or thought they were).

Longitude could be calculated on land, as time could be accurately measured there from a variety of stable observations and timekeepers. This stability was lost at sea. However, the link between local time and longitude was well established, if only local time could be told on the pitching deck of a ship. To achieve this, some sought a sea-going clock as the answer to the longitude problem. Others sought to measure the position of the Moon, which acts like a celestial clock when its movement is compared with respect to the stars or Sun.

The latter method was first performed at sea by Jean-Baptiste d’Apres de Mannevillette in 1749. Mannevillette, a French naval officer, and his astronomer collaborator, Nicolas-Louis de Lacaille, published their method and lunar tables, but only for July of 1761. The publication, and the method, was taken up by Nevil Maskelyne, who was observing the Transit of Venus of 1761 in St. Helena for the Royal Society of London. Maskelyne, from 1765 the Astronomer Royal, and his assistant, Robert Waddington, realized that they needed to present this system in an accessible way. They wrote manuals and calculated lunar tables that could be easily consulted. The latter appeared in the Nautical Almanac, which has been published annually since it first appeared in 1766.

The other answer to the longitude problem was the maritime chronometer. The goal was to crate a reliable timekeeper that would keep time at sea; therefore, a navigator could compare their time measurements with those of their port of departure. Comparing the two would yield the distance of travel east or west. Many instruments makers attempted to make such a timekeeper, although the most famous is John Harrison, who eventually was awarded prizes by the Board of Longitude for his work. However, Harrison’s models never went into general production and the technology was perfected by other technicians in the final decades of the eighteenth century.

Both methods took several decades to come into common usage by mariners, however. This reflects a general trend in the history of navigation, a lag between innovation and integration of a new method or instrument. It also sheds light on the more specific history of the teaching of navigation. As explained by Margaret Schotte, from the late-fifteenth to the mid-eighteenth centuries, mariners (at least those training to be masters or navigators) underwent increasing amounts of classroom or book training to learn the more and more mathematical particulars of navigation. This sort of training did not displace practical experience at sea, but it was part of a more nuanced apprenticeship for masters that encompassed the page as well as the sextant.

Indeed, Jim Bennett calls the turn of the eighteenth century and the beginning of the nineteenth century the zenith of the mathematical seamen. However, as Schotte explained, the assumed mathematical prowess for general mariners had already started to wane by the late-eighteenth century. Mariners still trained from books, but they increasingly focused on tables and shortcuts rather than complex mathematical theory. The lunar distance tables of Maskelyne are one such aid for sailors that would save computation. From the end of the nineteenth century, instrumentation and then electronics became prevalent in navigation, largely removing the navigator from computation.
